Pulse Oximeter - UP-200, A&D

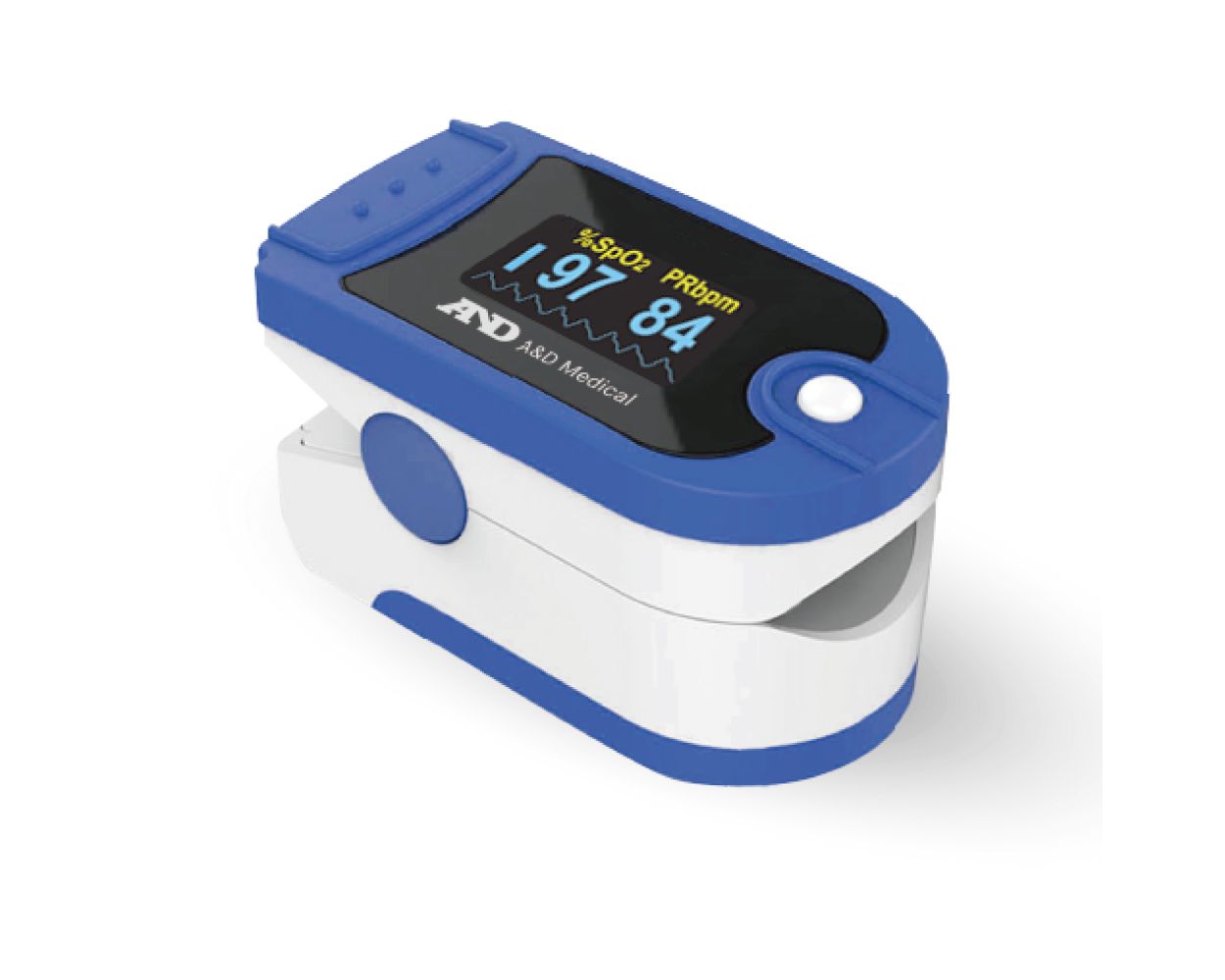

UP-200 Pulse Oximeter
The Pulse Oximeter is a non-invasive device intended for checking oxygen saturation of arterial hemoglobin (SpO2) and the pulse rate of adults at home.
Product highlights
Product highlights
- Easy to use, reliable Pulse Oximeter
- One button operation
- Results are clearly shown on the LCD
- The device is portable making it easy to take measurements on the way
- Power saving feature
What’s in the box?
- x 1 Pulse Oximeter
- x 1 instruction manual
- x 1 carrying case
- x 1 lanyard
- x 2 AAA batteries
Product highlights
Storage Environment: Temperature: -40°C – +60°C. Relative humidity: <=95% Atmospheric pressure: 500hPa -1060hPa
Operating Environment: Temperature: 10°C – 40°C. Relative humidity: <=75% Atmospheric pressure: 700hPa -1060hPa
Measurement of SpO2: Measurement Range: 0 -100%. Accuracy: 70-100%, ±2%; Below 70% unspecified
Measurement of Pulse Rate: Measurement Range: 30 bpm -250 bpm Accuracy: ±2 bpm
Power Requirements: 2 x 1.5V AAA alkaline battery (2.6-3.6V)
Power Consumption: Smaller than 25 mA
Resolution: SpO2: 1%, Pulse rate: 1 bpm
Optical Sensor: Red light (wavelength is 660nm, 6.65mW) Infrared (wavelength is 905nm, 6.75mW)
Dimensions (WxLxH): 2.3 x 1.3 x 1.3” (5.9 x 3.3 x 3.2 cm)
Weight: 1.8 oz (52 g) with the batteries
| Manufacturer | A&D |
|---|
